In the world of modern engineering and design, finding the perfect housing for electronic components can be a challenge.
The solution often lies in using extruded aluminum enclosures, known for their durability, versatility, and efficiency.
These enclosures not only protect sensitive electronics but also enhance the overall performance of the devices they encase. From consumer electronics to industrial machinery, the applications are vast and the benefits numerous.

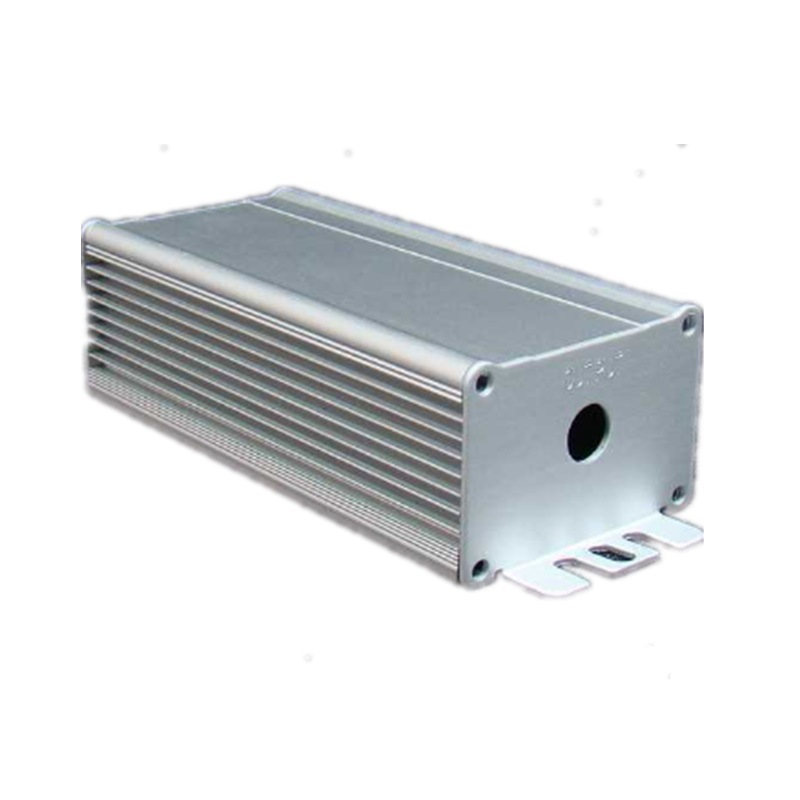

Extruded aluminum enclosures are protective housings made by forcing aluminum through a die to create long sections with specific cross-sectional profiles.
These enclosures are widely used to safeguard electronic components, provide structural support, and ensure effective heat dissipation in various applications, ranging from consumer electronics to industrial machinery.
Understanding the intricacies of extruded aluminum enclosures can help us choose the right solution for our specific needs.
Now, let’s delve deeper into their functions, advantages, and manufacturing process to appreciate their value and versatility fully.
Why Are Extruded Aluminum Enclosures Important in Industries?
Extruded aluminum enclosures are versatile and find applications in numerous industries due to their robust and adaptable nature.

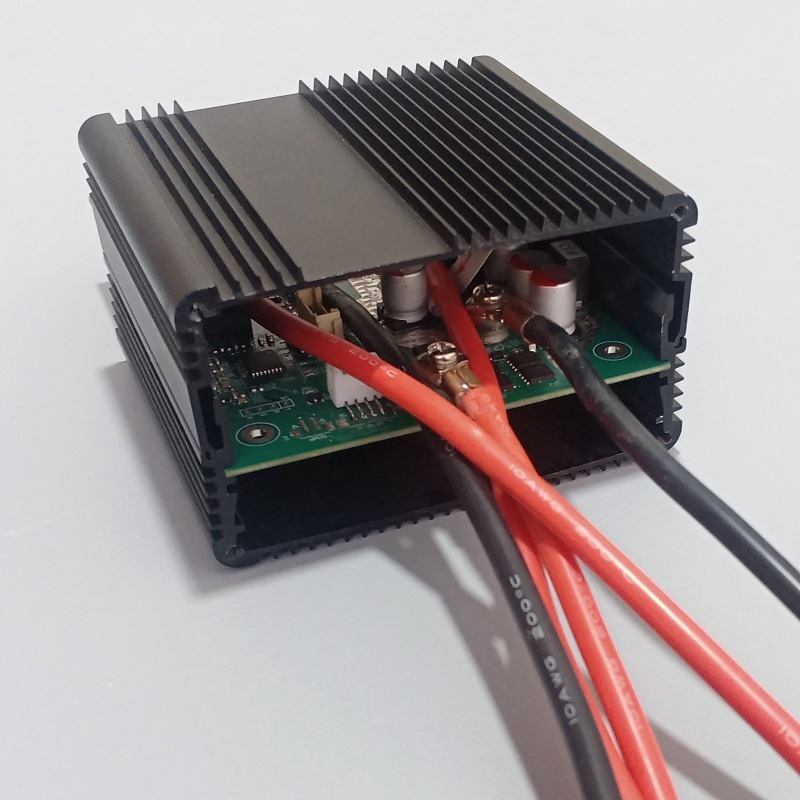

They are primarily used to protect electronic components, offering a secure and durable housing that shields delicate parts from physical damage, dust, and moisture.
1. In consumer electronics, for example, they are often used to house gadgets like tablets, power supplies, and audio equipment. Their sleek appearance and excellent thermal properties make them ideal for these applications.
2. In industrial settings, these enclosures are indispensable for control panels, instrumentation, and monitoring systems. They provide a rugged and durable solution that can withstand harsh industrial environments.
3. The automotive industry relies on extruded aluminum enclosures for applications such as engine control units and battery management systems. The lightweight and strong nature of aluminum make it perfect for automotive applications, where weight reduction is critical for performance and fuel efficiency.
4. In the renewable energy sector, extruded aluminum enclosures are used for housing components like solar inverters and wind turbine controllers, where they provide protection from the elements and ensure reliable operation.
What Are the Benefits of Extruded Aluminum Enclosures?
Extruded aluminum enclosures offer numerous advantages, making them a popular choice across various industries. Some of the key benefits include:
1. Lightweight Yet Strong: Aluminum is a lightweight material, which makes these enclosures easy to handle and transport. Despite their lightness, they offer excellent strength and durability, providing robust protection for housed components.
2. Excellent Heat Dissipation: Aluminum has superior thermal conductivity, which helps in efficient heat dissipation. This property is crucial for electronic components that generate heat, as it prevents overheating and ensures reliable operation. Heat sinks and fins can be integrated into the design to enhance thermal performance further.
3. Corrosion Resistance: Aluminum naturally forms a protective oxide layer that resists corrosion. This feature is enhanced through anodizing and other surface treatments, making the enclosures suitable for harsh environments. This makes aluminum enclosures ideal for outdoor applications where exposure to the elements is a concern.
4. Cost-Effective: The extrusion process is cost-efficient, especially for large production runs. The durability and low maintenance requirements of aluminum enclosures further contribute to cost savings over time. The material’s recyclability also adds to its cost-effectiveness, as scrap aluminum can be reused.
5. Aesthetic Appeal: Aluminum enclosures have a modern, sleek appearance that can be further enhanced through various finishing processes. This makes them suitable for consumer-facing products where appearance matters.
6. Environmental Benefits: Aluminum is a highly recyclable material, making it an environmentally friendly choice. Recycling aluminum requires only 5% of the energy needed to produce new aluminum, reducing the overall carbon footprint.
What is the Manufacturing Process of Extruded Aluminum Enclosures?
The manufacturing process of extruded aluminum enclosures involves several key steps. This process allows to produce complex shapes with high precision and uniformity. The process can be broken down into the following stages:
1. Heating the Aluminum Billets: The aluminum billets are heated to a temperature where the metal becomes malleable but not molten. This typically ranges between 900°F and 1100°F (482°C to 593°C).
2. Extrusion through a Die: The heated aluminum is then forced through a die using a hydraulic press. The die is a specialized tool that shapes the aluminum into the desired profile as it exits the press.
3. Cooling: The extruded aluminum profiles are rapidly cooled using air or water quenching to solidify the metal and set the shape.
4. Cutting to Length: Once cooled, the extruded sections are cut to the required lengths for further processing.
After the extrusion process, the aluminum sections undergo further machining processes.
These include drilling, tapping, milling, and the addition of features like mounting holes, cutouts for connectors, and slots for ventilation. The final step involves finishing, which can include anodizing, powder coating, or painting.
What Should We Consider When Designing Aluminum Extrusion Enclosure?
Designing aluminum extrusion enclosures involves several key considerations to ensure functionality and aesthetics. Some important factors include:

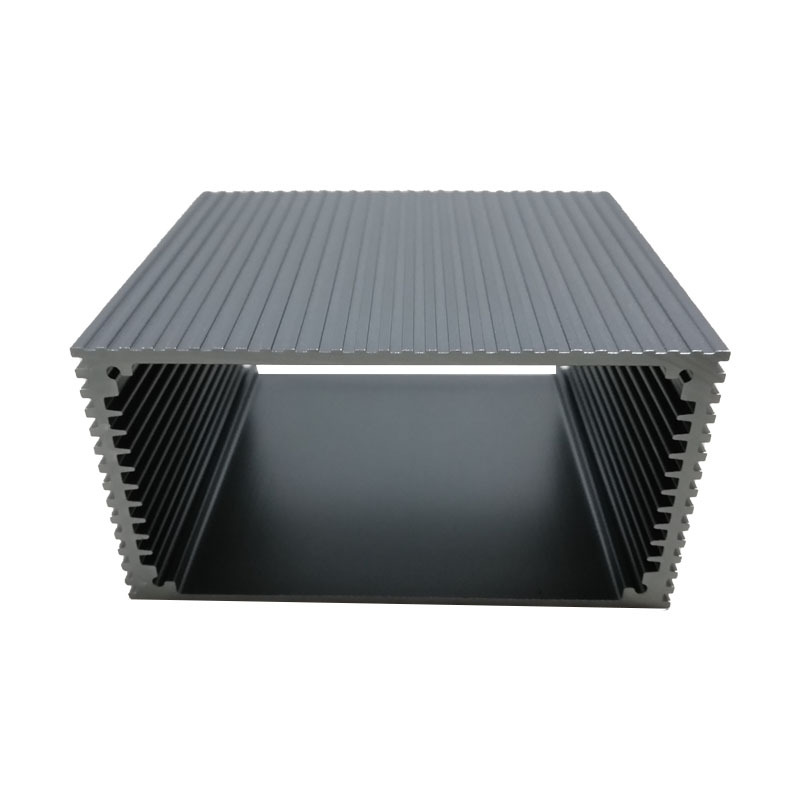

• Thermal Management: Proper heat dissipation is crucial for electronic enclosures. Design features such as fins and vents can enhance thermal management. Integrating heat sinks and ensuring adequate airflow can prevent overheating and prolong the lifespan of the components.
• Structural Integrity: The enclosure must provide sufficient strength and rigidity to protect the components inside. This requires careful consideration of the material thickness and reinforcement features. Internal ribs and supports can be added to improve structural strength without significantly increasing weight.
• Ease of Assembly: The design should facilitate easy assembly and disassembly for maintenance and upgrades. Consideration of mounting points and fasteners is essential.
• Aesthetic Considerations: The appearance of the enclosure can be important, particularly for consumer-facing products. Smooth finishes, sleek designs, and color options can enhance the visual appeal of the enclosure.
Summary
Extruded aluminum enclosures offer a blend of strength, flexibility, and thermal efficiency, making them a preferred choice for many industries.
Whether you’re an engineer, product designer, hobbyist, or general consumer, understanding their benefits and applications can significantly impact your projects.
By leveraging the customization options and inherent advantages of aluminum, you can create robust, efficient, and aesthetically pleasing enclosures that meet your specific requirements.
